DIN 558 / ISO 4017
Steel Hardness: 4.8
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

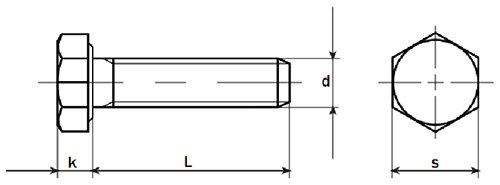

| Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom. Dia. (d) | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | (M 18) | M 20 | ||||
| Thread Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | ||||
| K | Nominal | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | |||
| Min. | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | ||||
| Max. | 4.15 | 5.45 | 6.56 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | ||||
| s | Max. | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | |||
| Min. | 9.78 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | ||||
| L | WEIGHT IN KG/1000 PCS | |||||||||||
| 10 | 4.08 | 9.10 | 16.20 | 23.30 | 38.00 | |||||||
| 12 | 4.42 | 9.80 | 17.20 | 25.00 | 40.00 | 52.90 | ||||||
| 14 | 4.76 | 10.50 | 18.20 | 26.40 | 42.00 | 55.60 | ||||||
| 16 | 5.11 | 11.10 | 19.20 | 27.70 | 44.00 | 58.30 | 82.00 | 105.0 | ||||
| 18 | 5.45 | 11.70 | 20.20 | 29.10 | 46.00 | 60.90 | 84.90 | 110.0 | ||||
| 20 | 5.80 | 12.30 | 21.20 | 31.00 | 48.00 | 63.50 | 87.20 | 114.0 | ||||
| 22 | 6.15 | 12.90 | 22.20 | 33.00 | 50.00 | 66.20 | 92.20 | 119.0 | ||||
| 25 | 6.65 | 13.90 | 23.70 | 34.10 | 53.00 | 70.20 | 95.80 | 124.0 | ||||
| 28 | 7.15 | 14.90 | 25.20 | 36.20 | 55.90 | 74.20 | 100.00 | 129.0 | ||||
| 30 | 7.51 | 15.50 | 26.20 | 37.70 | 57.90 | 76.90 | 104.00 | 134.0 | ||||
| 35 | 8.37 | 17.10 | 28.70 | 41.30 | 62.90 | 83.50 | 112.00 | 145.0 | ||||
| 40 | 9.23 | 18.70 | 31.20 | 44.90 | 67.90 | 90.20 | 120.00 | 155.0 | ||||
| 45 | 10.10 | 20.30 | 33.70 | 48.50 | 72.90 | 97.10 | 128.00 | 165.0 | ||||
| 50 | 11.00 | 21.80 | 36.20 | 52.00 | 77.90 | 103.00 | 136.00 | 176.0 | ||||
| 55 | 11.90 | 23.40 | 38.70 | 55.60 | 82.80 | 110.00 | 145.00 | 186.0 | ||||
| 60 | 12.70 | 25.00 | 41.30 | 58.20 | 87.80 | 117.00 | 153.00 | 196.0 | ||||
| 65 | 13.60 | 26.60 | 43.80 | 62.80 | 92.80 | 123.00 | 161.00 | 207.0 | ||||
| 70 | 14.40 | 28.20 | 46.30 | 66.40 | 97.90 | 130.00 | 169.00 | 217.0 | ||||
| 75 | 15.30 | 29.80 | 48.80 | 70.00 | 102.00 | 137.00 | 177.00 | 227.0 | ||||
| 80 | 16.20 | 31.40 | 51.30 | 73.60 | 107.00 | 144.00 | 186.00 | 238.0 | ||||
| 85 | 33.00 | 53.80 | 77.20 | 112.00 | 150.00 | 194.00 | 247.0 | |||||
| 90 | 34.60 | 56.30 | 80.80 | 117.00 | 157.00 | 202.00 | 258.0 | |||||
| 95 | 35.20 | 59.80 | 84.40 | 122.00 | 164.00 | 210.00 | 268.0 | |||||
| 100 | 37.70 | 61.30 | 88.00 | 127.00 | 170.00 | 218.00 | 279.0 | |||||
| 110 | 40.90 | 66.40 | 95.20 | 137.00 | 184.00 | 235.00 | 300.0 | |||||
| 120 | 71.40 | 102.00 | 147.00 | 197.00 | 251.00 | 320.0 | ||||||
| 130 | 76.40 | 109.00 | 157.00 | 210.00 | 268.00 | 340.0 | ||||||
| 140 | 81.40 | 116.00 | 167.00 | 224.00 | 284.00 | 361.0 | ||||||
| 150 | 86.40 | 123.00 | 177.00 | 237.00 | 300.00 | 381.0 | ||||||
| 160 | 316.00 | 402.0 | ||||||||||
| 170 | 332.00 | 422.0 | ||||||||||
| 180 | 348.00 | 442.0 | ||||||||||
| 190 | 364.00 | 462.0 | ||||||||||
| 200 | 380.00 | 484.0 | ||||||||||
| Nom. Dia. (d) | M22 | M24 | M27 | M30 | |||||
| Thread Pitch | 2.5 | 3 | 3 | 3.5 | |||||
| K | Nominal | 14 | 15 | 17 | 18.7 | ||||
| Min. | 13.78 | 14.78 | 16.65 | 18.28 | |||||
| Max. | 14.22 | 15.22 | 17.35 | 19.12 | |||||
| s | Max. | 32 | 36 | 41 | 46 | ||||
| Min. | 31.61 | 35.38 | 40 | 45 | |||||
| L | WEIGHT IN KG/1000 PCS | ||||||||
| 25 | 155.0 | 199.0 | 280.0 | ||||||
| 28 | 161.0 | 200.0 | 292.0 | ||||||
| 30 | 168.0 | 214.0 | 310.0 | ||||||
| 35 | 181.0 | 229.0 | 319.0 | 424.0 | |||||
| 40 | 193.0 | 244.0 | 338.0 | 448.0 | |||||
| 45 | 206.0 | 259.0 | 358.0 | 472.0 | |||||
| 50 | 219.0 | 274.0 | 377.0 | 496.0 | |||||
| 55 | 232.0 | 289.0 | 397.0 | 519.0 | |||||
| 60 | 244.0 | 304.0 | 416.0 | 543.0 | |||||
| 65 | 257.0 | 319.0 | 435.0 | 566.0 | |||||
| 70 | 269.0 | 334.0 | 454.0 | 590.0 | |||||
| 75 | 282.0 | 348.0 | 473.0 | 614.0 | |||||
| 80 | 295.0 | 363.0 | 492.0 | 637.0 | |||||
| 85 | 308.0 | 378.0 | 512.0 | 661.0 | |||||
| 90 | 321.0 | 393.0 | 531.0 | 685.0 | |||||
| 95 | 333.0 | 408.0 | 550.0 | 708.0 | |||||
| 100 | 346.0 | 423.0 | 569.0 | 732.0 | |||||
| 110 | 371.0 | 453.0 | 608.0 | 779.0 | |||||
| 120 | 397.0 | 483.0 | 647.0 | 827.0 | |||||
| 130 | 421.0 | 513.0 | 685.0 | 874.0 | |||||
| 140 | 448.0 | 543.0 | 724.0 | 921.0 | |||||
| 150 | 473.0 | 572.0 | 762.0 | 969.0 | |||||
| 160 | 498.0 | 602.0 | 801.0 | 1010.0 | |||||
| 170 | 523.0 | 632.0 | 839.0 | 1060.0 | |||||
| 180 | 548.0 | 662.0 | 875.0 | 1110.0 | |||||
| 190 | 573.0 | 692.0 | 911.0 | 1160.0 | |||||
| 200 | 598.0 | 722.0 | 947.0 | 1210.0 | |||||
| Nominal size and thread diameter d | Pitch of thread p | Width across flats s | Width across corners e | Thickness of nut m | ||
| Max. | Min. | Min. | Max. | Min. | ||
| M12 | 1.75 | 18.00 | 17.57 | 21.10 | 10.80 | 10.37 |
| M16 | 2.00 | 24.00 | 23.67 | 26.75 | 14.80 | 14.10 |
| M20 | 2.50 | 30.00 | 29.16 | 32.95 | 18.00 | 16.90 |
| M24 | 3.00 | 36.00 | 35.00 | 39.55 | 21.50 | 20.20 |
| M30 | 3.50 | 46.00 | 45.00 | 50.85 | 25.60 | 24.30 |
| M36 | 4.00 | 55.00 | 53.80 | 60.79 | 31.00 | 29.40 |
| Product Characteristic | Standard | |||
| Nuts | ||||
| General Requirements | ISO 4032 & 4034 | |||
| Materials & Manufacture | ISO 4032 & 4034 Class 8, 10 & 12 | |||
| Finish / Coatings | Self Colour / Black | ISO 4032 & 4034 | ||
| Zinc Electroplated | BS 7371-3 or BS EN ISO 4042 | |||
| Hot Dip Galvanized | BS 7371-6 or BS EN ISO 10684 | |||
| Mechanical Properties | Self Colour / Zinc Electroplated | ISO 4032 & 4034 Class 8 | ||
| Hot Dip Galvanized | ISO 4032 & 4034 Class 10 & 12 | |||
| Dimensions & Tolerances | ISO 4032 & 4034 | |||
| Threads | Self Colour / Zinc Electroplated | ISO 965-2 Class 6H | ||
| Hot Dip Galvanized | ISO 965-2 Class 6AZ | |||
| Product Marking | BS EN ISO 898-2 | |||
| Nut thread Diameter |
Stress Area Test Mandrel |
Property Class | |
| 8 | 10 | ||
| Tolerance class 6H (1) |
Tolerance class 6AZ (2) |
||
| mm2 | Proof Load kN | Proof Load kN | |
| M12 | 84.3 | 67 | 78.1 |
| M16 | 157 | 125 | 150 |
| M20 | 245 | 196 | 236 |
| M24 | 353 | 282 | 342 |
| M30 | 561 | 448 | 551 |
| M36 | 817 | 653 | 808 |
| 6H (1) is the tolerance class for self colour & Zinc plated nuts. | |||
| 6AZ (2) is the tolerance class for hot dip galvanized nuts | |||
