DIN 605

FLAT COUNTERSUNK HEAD BOLTS

WITH LONG SQUARE NECK

DIN 605

Steel Hardness: 4.8, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

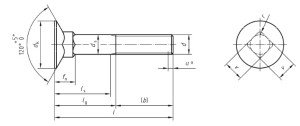

Dimensions
d M6 M8 M10
P 1 1.25 1.5
b 1 18 22 26
2 24 28 32
3 41 45
dk max. 16.55 20.65 24.65
min. 15.45 19.35 23.35
ds max. 6 8 10
min. 5.52 7.42 9.42
fn max. 7.45 9.45 11.55
min. 6.55 8.55 9.45
r max. 0.9 1.2 1.5
v max. 6.48 8.58 10.58
min. 5.52 7.42 9.42
L ls and lg
ls lg ls lg ls lg
Nominal min. max. min. max. min. max. min. max.
30 28.95 31.05 12.50 16.00
35 33.75 36.25 12.50 16.00
40 38.75 41.25 17.00 22.00 16.00 18.00
45 43.75 46.25 22.00 27.00 16.75 23.00 18.00
50 48.75 51.25 27.00 32.00 21.75 28.00 16.50 24.00
55 53.50 56.50 32.00 37.00 26.75 33.00 21.50 29.00
60 58.50 61.50 37.00 42.00 31.75 38.00 26.50 34.00
65 63.50 66.50 36.75 43.00 31.50 39.00
70 68.50 71.50 41.75 48.00 36.50 44.00
80 78.50 81.50 51.75 58.00 46.50 54.00
90 88.75 91.75 56.50 64.00
100 98.25 101.75 66.50 74.00
d M6 M8 M10
L WEIGHT IN KG/1000 PCS
30 8.80 15.40
35 9.80 17.40
40 10.80 19.30 30.60
45 11.90 21.30 33.60
50 12.90 23.20 36.50
55 13.90 25.20 39.40
60 14.90 27.10 42.40
65 29.10 45.30
70 31.00 48.20
80 34.90 54.10
90 59.90
100 65.70
